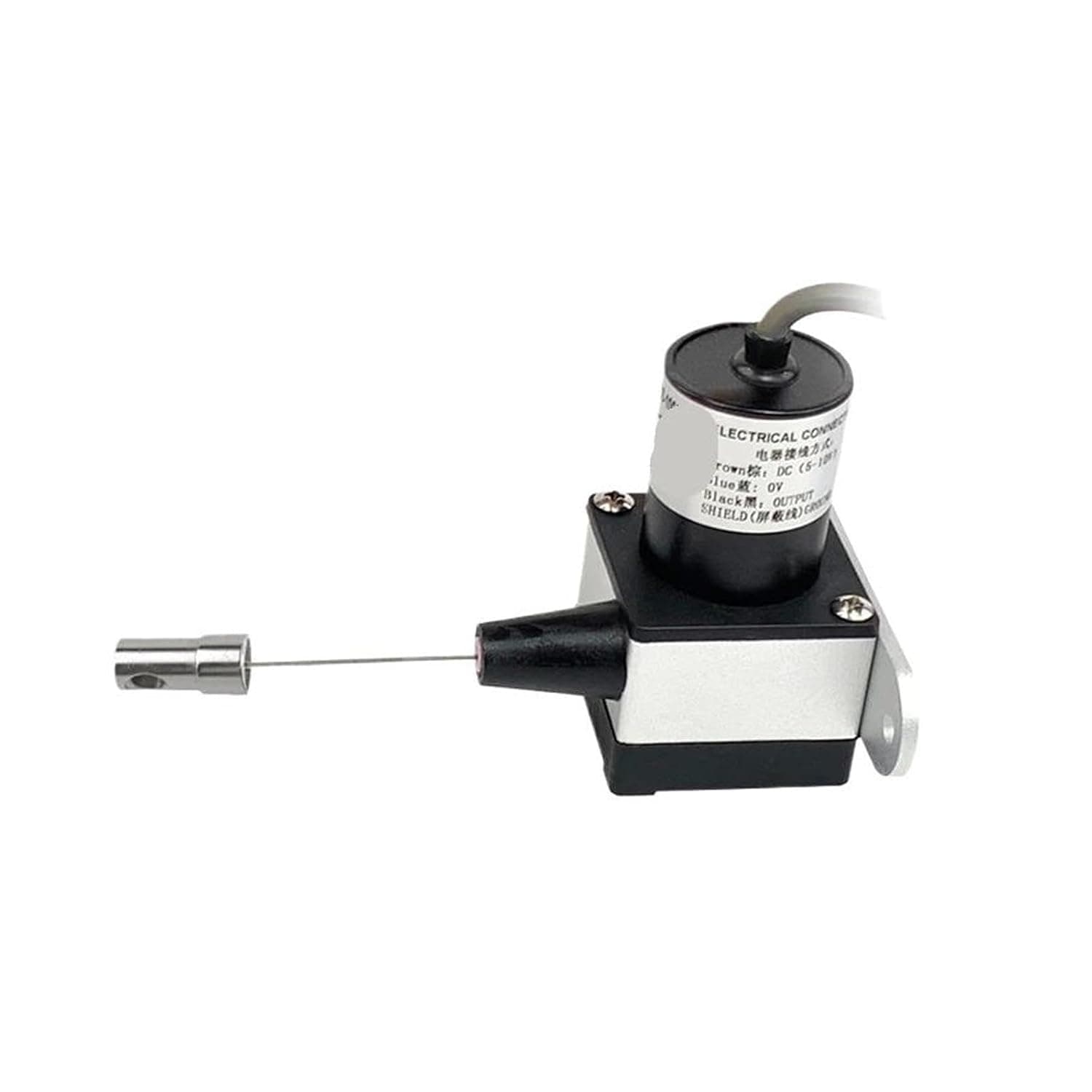

Pull Rope Displacement Sensor Small Size with High Accuracy Mps-XXS 100mm-1000mm Used for Bridge Monitoring Linear Encoder

MPS-XXS 100mm-1000mm Widely Used For Bridge Monitoring Pull Rope Displacement Sensor Small Size With High Accuracy MPS-XXS 100mm-1000mm Widely Used For Bridge Monitoring Pull Rope Displacement Sensor Small Size With High Accuracy Main specification: Stroke Length(mm): 100mm~1000mm Output Signal: Resistance (Potentiometer) 0-5K Linearity : ± 0.25%FS Repeatability: ± 0.02%FS Resolution: Essentially Infinite Sensor Type: Wire-Winding potentiometer Max Measuring Speed (back and forth):500mm/sec Mechanic Specifications of Resistance Wire sensor: Input Resistance: 5 ± 10%FS(normal); Rated Power (Watts): 1W at 70(500mm); 2W at 70(1000mm) Recommended Input Voltage:5/10VDC Enviroment Specifications of Resistance Wire sensor: Working Temperature: 0-+70 Storage Temperature: -20-+80 Vibration: 10Hz to 2000Hz Application: storage positioning, dam protections, sluice gate control, screw machines, paper machines, sewing machines, sheet metal machines, printing machines, horizontal control equipment, construction machines, industrial robot, injection machines, woodworker machines, elevators, air compressors, hydraulic machines, X-Y axis displacement, liquid level measurements and position control. Electronic : No Model Number : MPS-XXS-R DIY Supplies : Electrical Origin : Mainland China Output Voltage : Resistance output Item : MPS-XXS-R-100-1000mm Linearity : 0.25%FS Repeatability : ± 0.02%FS Resolution : Essentially Infinite Sensor Type : Wire-Winding potentiometer Vibration : 10Hz to 2000Hz Output : 0-5K
