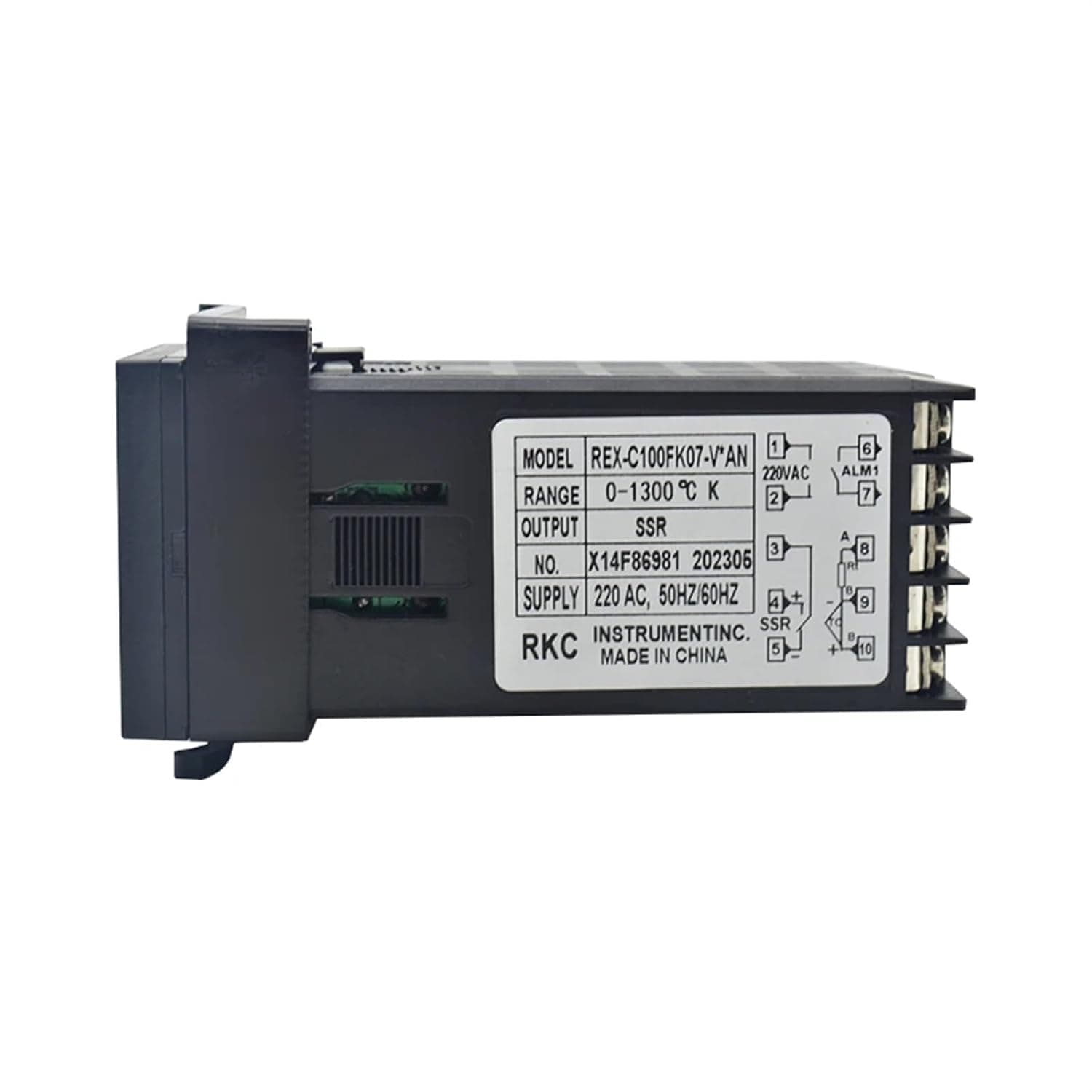

REX-C100 Pid Temperature Controller 1300 Degree 220V SSR Relay Output+40DA SSR+K Thermocouple Pid REX-C100 1300C(C100 SSR Output)

Temperature Controllers PACKING LIST C100 Relay Output=1X REX-C100 Temperature Controller Relay Output +English Manual C100 SSR Output=1X REX-C100 Temperature Controller SSR Output +English Manual Set 1 SSR Output=1X REX-C100 Temperature Controller +1X 40DA SSR+1X K Type Thermocouple Set 2 SSR Output=1X REX-C100 Temperature Controller +1X 40DA SSR+1X K Type Thermocouple+1X Heat Sink SPECIFICATIONS REX-C100 Temperature Controller Model Number: REX-C100FK07-V*AN/REX-C100FK07-M*AN Range: 0 to 1300 (Only When Use With The K Type Thermocouple) Control Output: SSR Output/Relay Output Alarm Output: 1 Alarm Output Dimensions: 48x48x108mm Power Suppliy: 220VAC, 50/60Hz Max.40A SSR 1.Rated Current: 40A 2.Input Voltage: 3-32VDC 3.Output Voltage: 24-380VAC K Type Thermocouple 1.Wire Length: 1M 2.Temperature Range : 0-600 (400 is Recommended For Long Term Use) 3.Internal Insulation: Fiberglass 4.External Shielding: Insulated Shielding Heat Sink 50*80*50mm Heat Sink Suitable for Single Phase SSR 10-40A
